VMD-WW009-A1-B1-C070-D008-E010-F1-G008-H10
| Τόπος καταγωγής | Κίνα |
|---|---|
| Μάρκα | Other |
| Πιστοποίηση | Certificate of Origin |
| Αριθμό μοντέλου | VMD-WW009-A1-B1-C070-D008-E010-F1-G008-H10 |
| Ποσότητα παραγγελίας min | 1 PC |
| Τιμή | $1000 |
| Συσκευασία λεπτομέρειες | Αυθεντική συσκευασία κουτιού |
| Χρόνος παράδοσης | 3-5 μέρες |
| Όροι πληρωμής | T/T |
| Δυνατότητα προσφοράς | 1-99 τμχ / 3-5 ημέρες |
Λεπτομέρειες
| Αριθμός ενότητας | VMD-WW009 | Αριθμός παραγγελίας | A1-B1-C070-D008-E010-F1-G008-H10 |
|---|---|---|---|
| Κατάσταση | Σε απόθεμα | Βάρος | 1KG |
| Χρόνος ανοχής | 3-5 εργάσιμες | Μάρκα | Αλλος |
| Προέλευση | Κίνα | Τιμή πώλησης | 1000 δολάρια |
| Εγγύηση | 1 Έτος | ||
| Επισημαίνω | MEGT VBM industrial component,VMD-WW009-A1 precision part,MEGT VBM mechanical module |
||
Περιγραφή προϊόντων
VMD-WW009-A1-B1-C070-D008-E010-F1-G008-H10

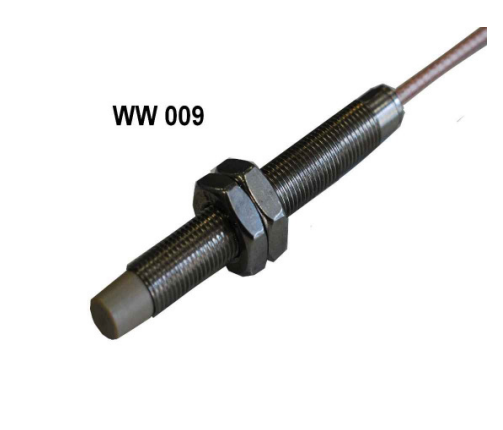

The VMD-WW009-A1-B1-C070-D008-E010-F1-G008-H10 is a high-performance eddy-current proximity sensor. Designed for use with a transmitter or converter, it enables non-contact measurement of shaft vibration or relative displacement.
Its measurement principle is based on the eddy-current effect: the sensor probe generates a high-frequency alternating magnetic field. When a metallic target approaches the probe, eddy currents are induced on the target's surface; the resulting counter-magnetic field alters the impedance of the probe coil, allowing the distance between the probe and the target to be precisely calculated by measuring this impedance change.
Key Features
- Non-contact measurement based on eddy current principle
- High precision with maximum measurement range of 5 mm (0.5 mm to 5.5 mm)
- Excellent accuracy when used with 1.7225 target material
- Interchangeable probes with identical cable lengths
- Stainless steel (1.4305) housing for superior corrosion and impact resistance
- Multi-channel monitoring capability for simultaneous vibration sensor connections
- Flexible modular configuration with customizable input/output options
- Real-time alarm and trip output functionality
Technical Specifications
| Brand Name | Other |
|---|---|
| Model | VMD-WW009 |
| Ordering Information | A1-B1-C070-D008-E010-F1-G008-H10 |
| Catalog | Proximity Transducer |
| Gross Weight | 2.2 lbs / 35.2 oz / 1kg |
| Packing Size | 16cm x 16cm x 12cm |
| Country of Origin | China |
| HS Code | 8537101190 |
| Lead Time | In Stock |
| Shipping Port | Xiamen |
| Payment | T/T |
| Sales Price | $1000 |
| Warranty | 12 months |
| Courier Partners | DHL, UPS, TNT, FedEx and EMS |
Installation Procedure
- Probe Installation: Secure sensor probe to bracket or mounting fixture, ensuring probe axis is perpendicular to target surface
- Gap Setting: Adjust initial gap between probe and target to 0.5 mm to 5.5 mm linear measurement range
- Cable Connection: Connect sensor to transmitter using triaxial Teflon cable with minimum 20 mm bending radius
- System Matching: Ensure sensor, extension cable, and transmitter belong to same calibration system
- Protective Installation: Select appropriate protective housing based on environmental requirements
Application Case Study
This sensor monitors shaft displacement on compressor equipment at natural gas transmission stations. The stainless-steel housing withstands chemical corrosion, while the triaxial Teflon cable ensures stable signal transmission across -20°C to +220°C. Continuous monitoring enables early detection of rotor imbalance trends for preventive maintenance scheduling.
Frequently Asked Questions
What is the maximum measurement range?
Maximum range is 5 mm with effective measurement interval of 0.5 mm to 5.5 mm (using target material 1.7225).
Maximum range is 5 mm with effective measurement interval of 0.5 mm to 5.5 mm (using target material 1.7225).
Are probes with different cable lengths interchangeable?
No. Only probes with identical cable lengths are interchangeable.
No. Only probes with identical cable lengths are interchangeable.
What is the operating temperature range?
Probe body: -20°C to +180°C; Triaxial cable: -20°C to +220°C; Triaxial connector: -20°C to +135°C.
Probe body: -20°C to +180°C; Triaxial cable: -20°C to +220°C; Triaxial connector: -20°C to +135°C.
What is the warranty period?
12-month standard industrial warranty with 5-10 year service life under proper installation and operation.
12-month standard industrial warranty with 5-10 year service life under proper installation and operation.
